A leaking or failing pipe connection can shut down your entire operation. Often, the culprit is flange misalignment. This happens when two steel pipe flanges aren’t lined up correctly before they’re bolted together.
It might seem like a small issue, but misalignment puts uneven stress on bolts and gaskets, leading to leaks, safety hazards, and costly downtime. The good news? With the right knowledge, you can spot it and stop it.
This guide will walk you through the common types of misalignment, how to find them, and the best practices to prevent them for good.
What Does Flange Misalignment Look Like?
There are two main types you’ll encounter. Sometimes, you might even see both at once!
1. Parallel Misalignment
This is when the two steel flanges are offset horizontally or vertically. Think of it like two circles that should be perfectly stacked but are slightly side-by-side. This can cause a gap that the gasket has to bridge, leading to a weak seal.
2. Angular Misalignment
This happens when the faces of the flanges are not parallel. Imagine trying to clamp two wedges together the gap is uneven. This creates a pinch point that crushes the gasket on one side and leaves it loose on the other.

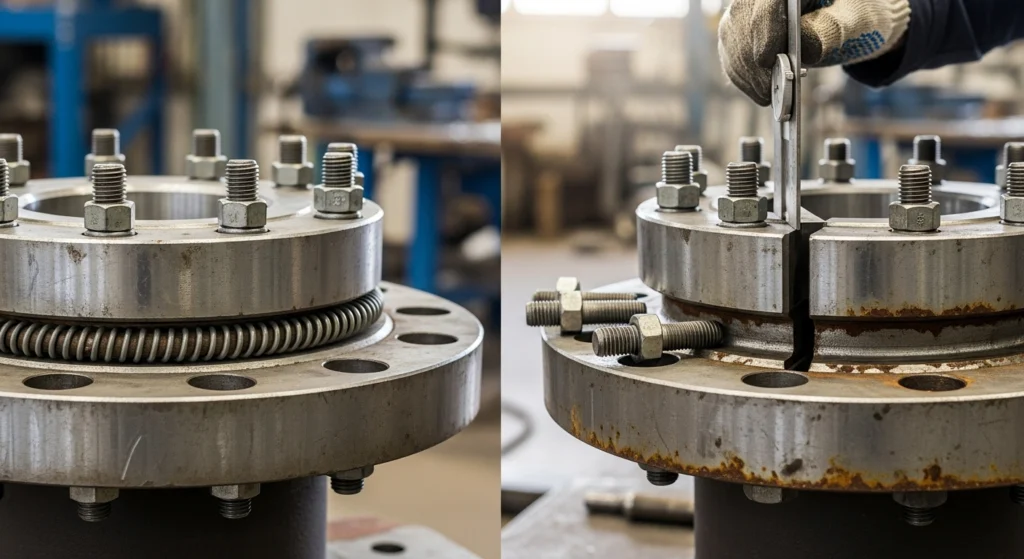

How to Spot Flange Misalignment: A Step-by-Step Check
You don’t always need high-tech tools for a basic check. Here’s what to look for during installation:
The Visual Inspection:
Before any bolts are tightened, take a good look. The flange faces should look even and parallel. You can often see a clear gap variation with the naked eye if something is wrong.
The Straightedge Test:
Place a straightedge (like a ruler or a dedicated alignment tool) across the diameter of the assembled flanges. Check it at multiple points top, bottom, left, and right. Any gap between the straightedge and the flange face indicates angular misalignment.
The Feeler Gauge Measurement:
This is where you get precise. Slide a feeler gauge into the gap between the flange faces at various points around the circle.
- A consistent gap all the way around means you’re well-aligned.
- A gap that is wider at the top than the bottom (or vice versa) indicates angular misalignment.
- An offset in the bolt holes indicates parallel misalignment.
A quick tip: Always ensure you’re using the right gasket for the job. A misaligned flange can easily damage a gasket during installation, causing leaks down the line. For specialized applications, sourcing high-quality ring type joint flanges and gaskets from a trusted supplier like Texas Flange can ensure a perfect fit.
Top Causes of Flange Misalignment (And How to Stop It)
Understanding the “why” is the first step to prevention.
- Pipe Stress: If the pipes are under tension or compression, they will force the flanges out of alignment. This is often caused by poor support, thermal expansion, or forcing components together during assembly.
- Improper Installation: The most common cause. This includes using impact wrenches that pull flanges unevenly, not following a cross-bolt tightening pattern, or starting with dirty or damaged flange faces.
- Settlement or Shifting: Over time, the ground or structure supporting the pipes can shift, putting new stress on the connections.
- Worn or Damaged Components: Using old, warped, or corroded flanges guarantees a bad connection.
Your Flange Alignment (FAQ)
1. What is the allowable tolerance for flange misalignment?
It depends on the flange class and size, but a general rule is that the offset should be less than 1/16 of an inch. For angular gap, a common tolerance is that the difference between the largest and smallest gap should not exceed 1/32 of an inch. Always check your specific engineering standards.
2. Can I fix misalignment by tightening the bolts harder?
Never. This is the most dangerous thing you can do. Over-tightening bends the bolts and warps the flanges, creating even more stress. It might stop a leak temporarily, but it will lead to a catastrophic failure later. Always loosen the bolts, realign, and re-tighten properly.
3. What tools can help correct severe misalignment?
For small adjustments, you can use alignment pins or clamps. For more severe cases, pros use flange spreaders or jaw-type alignment tools that safely push or pull the flanges into position without damaging them.
4. How does a weld neck flange help prevent misalignment?
Weld neck flanges have a long, tapered hub that helps distribute stress away from the flange face. This makes the connection more flexible and resistant to the pipe stresses that cause misalignment, making them ideal for critical high-pressure systems.
5. Does gasket type matter for slight misalignment?
Yes! Soft, flexible gaskets can tolerate minor misalignment better than hard, metal gaskets. However, a gasket should never be used as a fix for poor alignment practices. The goal is always to achieve proper alignment first.
Build a Safer, Leak-Free System with Confidence
Flange misalignment is a preventable problem. By taking the time to inspect, measure, and correct your steel pipe flanges, you save your team from the headaches of leaks, emergency shutdowns, and safety risks.
At flangessteel.com, we provide more than just high-quality carbon steel flanges; we provide the expertise you need. Our team has the practical experience to help you select the right flanges and advise on best installation practices for your specific application.
Don’t let a small misalignment cause a big problem. Contact our experts today for technical support or to get a quote on perfectly machined flanges for your next project.
